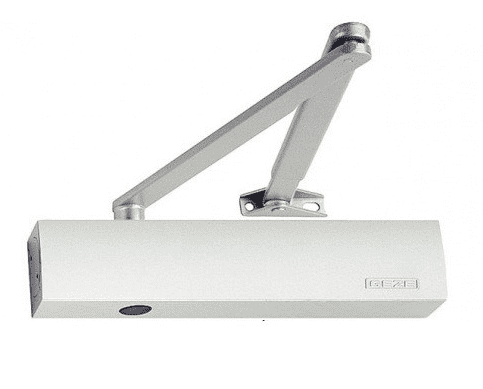

Door closer TS 4000 with link arm for doors with up to 1400 to 1600 mm leaf widths
Closing force, infinitely adjustable EN 1-6 or EN 5-7
End stop adjusted using the arm, closing speed can also be adjusted
Integrated opening buffer and optical closing force display
Can be used for right and left swing doors without conversion
For fire and smoke protection doors. Uninsulated steel fire door can only have the surface applied door closer mounted on the known fire side of the door (the side of the door that faces the risk of fire), this assessment to be undertaken and defined by building control.
Closing delay, set from the front, of up to 30 seconds
Optional: Hold-open range 150° (via the hold-open arm)
