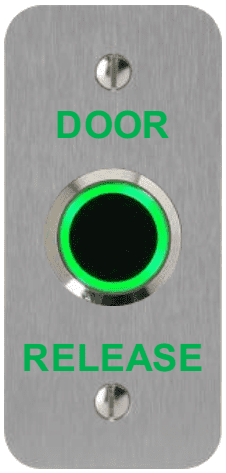

40SAP2301NS Touch Free Touchless IR LED Switch

• Touchless Infra-red switch
• Adjustable detection range 4 - 15 cm (± 25%)
• 304 grade stainless steel face plate
• Face plate dimensions 84.5 W x 39.5 H (mm)
• Adjustable output time 0.5 - 20 seconds
• Selectable red to green or green to red LED activation
• Push button with halo illumination (25 mm Dia)
• Power supply: 12 24 Vdc (40 mA @ 24 Vdc)
• NO/COM/NC output contacts (1A capacity @ 24 Vdc)
• Protection rating IP55 (EN60529) frontal presentation
• Option with surface mount simulated SSS back box
• Supplied with a galvanised steel back box (in-wall mounting)

Data Sheet Download
